Galvalume Steel Coil
Galvalume Steel Coil
Galvalume steel coil (GL), also known as Aluzinc steel coils, is produced through a process known as continuous hot-dip coating, which involves coating a steel substrate with a layer of 55% aluminum, 43.5% zinc, and 1.5% silicon to enhance its performance characteristics, providing superior corrosion resistance and longevity. This coating not only shields the steel from environmental factors but also offers a smooth, reflective surface that enhances its aesthetic appeal.
Galvalume Steel Coil is crucial in construction for roofing, siding, and structural components. In the automotive sector, it is used for body parts and frames. Its versatility extends to appliances, HVAC systems, and agricultural equipment, underscoring its wide application range due to its strength, durability, and exceptional corrosion resistance.
| Product | Galvalume Steel Coil, Galvalume Steel Sheet, Galvalume Corrugated Steel Sheet |

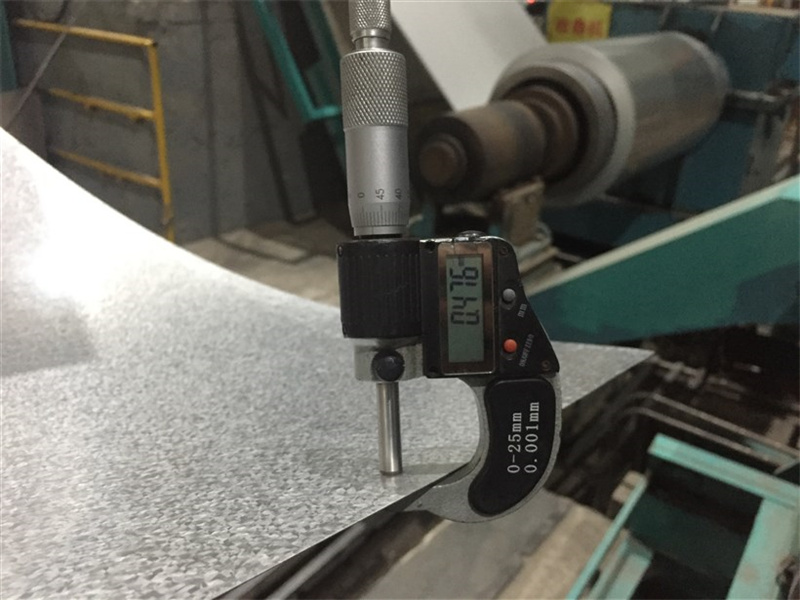

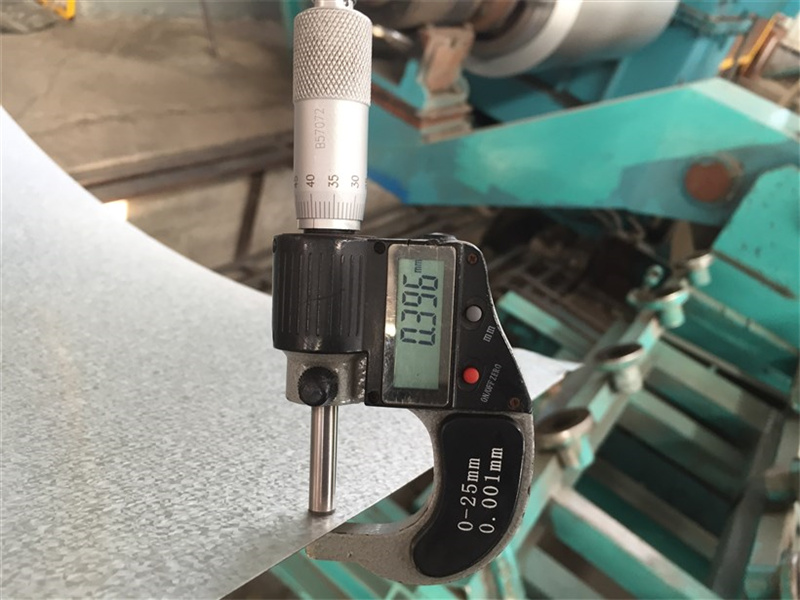

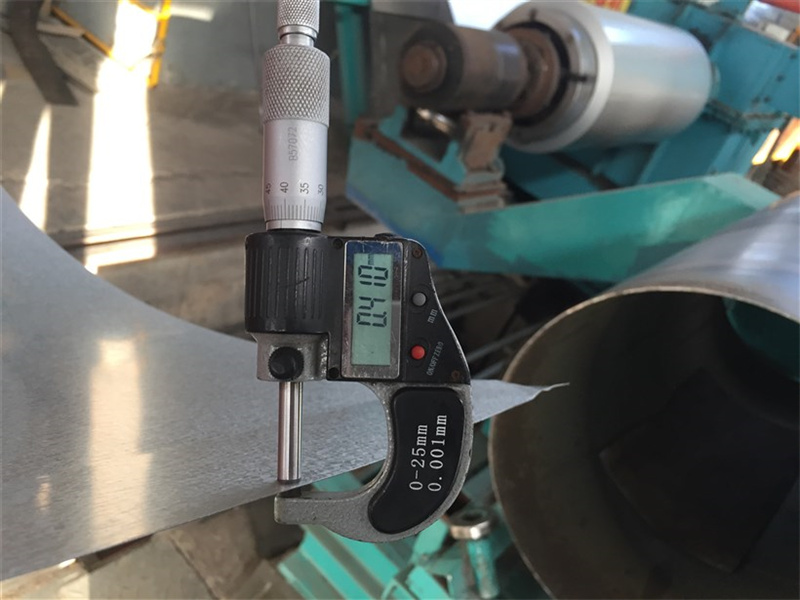

| Thickness | 0.12 – 2.00 MM |

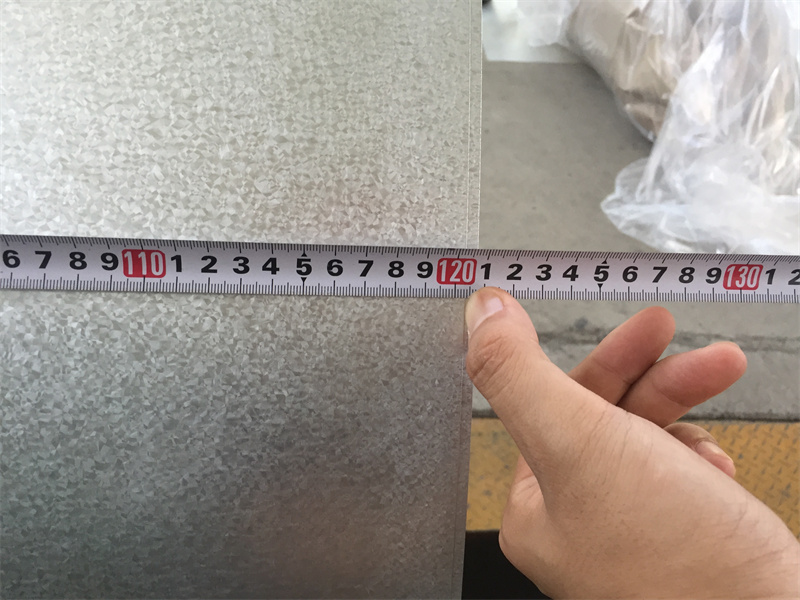

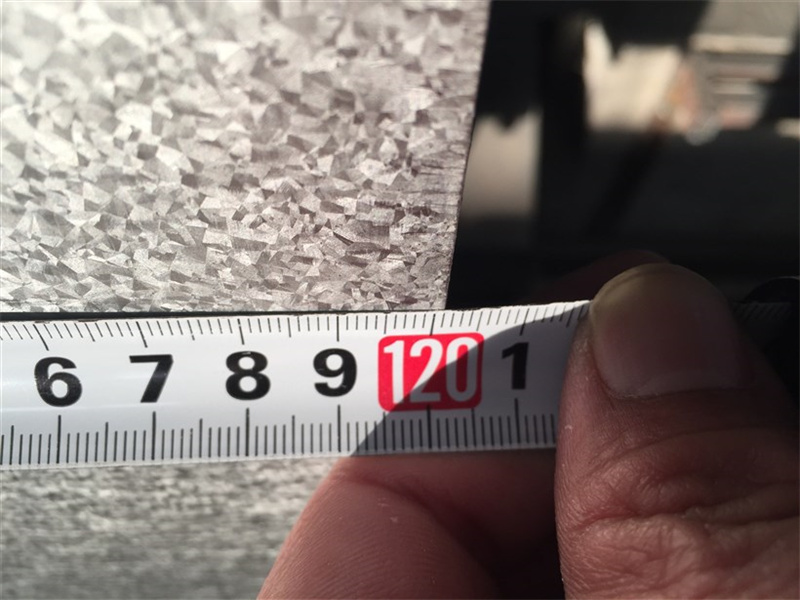

| Width | 720 – 1250 MM or Strip as customized |
| Steel Grade |
DX51D, DX52D, DX53D, DX54D, S250GD, S350GD, S450GD, S550GD, CS-A, CS-B, CS-C, G300, G350, G450, G500, G550 SGLCC, SGLCH, or others |
| Coating | AZ20-AZ200 G/M2 |
| Key Features | |
| Corrosion Resistance | The aluminum-zinc coating provides superior corrosion resistance compared to traditional galvanized steel. This makes Galvalume steel coil ideal for applications where exposure to moisture and harsh environmental conditions is a concern. |
| Durability | Galvalume steel coil is known for its durability and long-lasting performance. The coating helps protect the underlying steel substrate from rust and corrosion, extending the lifespan of the material. |
| Heat Resistance | The aluminum in the coating enhances the heat resistance of Galvalume steel coil, making it suitable for applications where high temperatures may be a factor. |

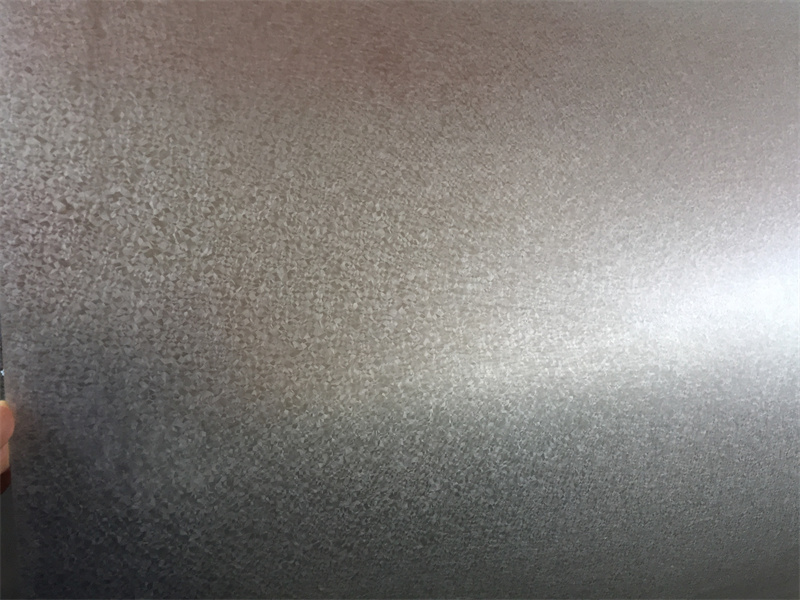

| Aesthetic Appeal | Galvalume steel coil has a smooth, metallic finish that gives it a modern and attractive appearance. This makes it a popular choice for architectural and design applications. |
| Versatility | Galvalume steel coil is used in a wide range of industries, including construction, automotive, appliances, and manufacturing, due to its versatile properties and performance benefits. |
| Key Production Process | |
| Steel Substrate Preparation | The process begins with preparing the steel substrate, which is typically a cold-rolled steel coil. The steel is cleaned and treated to remove any contaminants or oxides that may affect the adhesion of the coating. |
| Hot-Dip Coating | The cleaned steel substrate is then passed through a series of coating baths containing molten aluminum, zinc, and silicon alloy. The steel strip is continuously coated on both sides with the molten metal alloy to form a uniform coating layer. |
| Air Knives and Levellers | After the coating process, the steel strip passes through air knives and levellers to remove excess coating material and ensure a smooth and uniform coating thickness. |
| Cooling and Solidification | The coated steel strip is then cooled and solidified to allow the aluminum, zinc, and silicon alloy to bond with the steel substrate. This step is crucial for forming a strong and durable coating. |
| Skin Pass and Tension Levelling | The solidified coated steel strip undergoes skin pass and tension levelling processes to improve the surface finish, flatness, and mechanical properties of the Galvalume steel coil. |

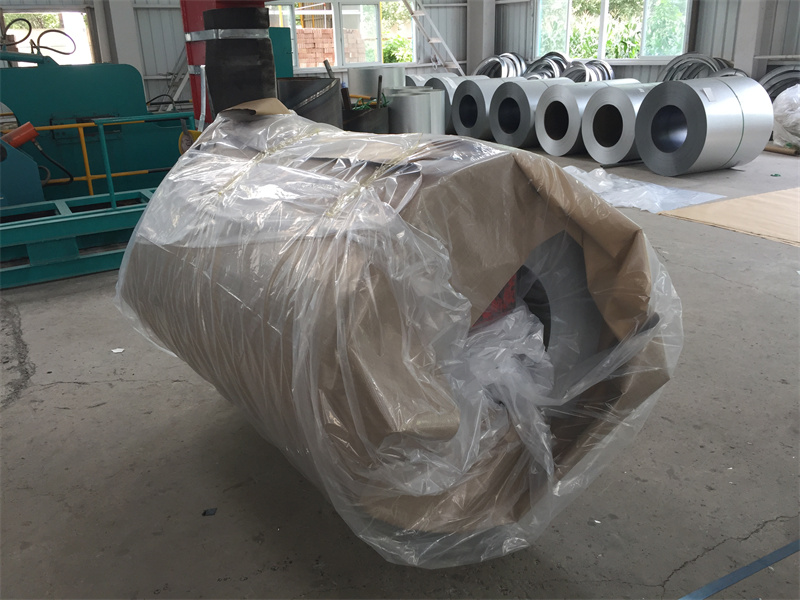

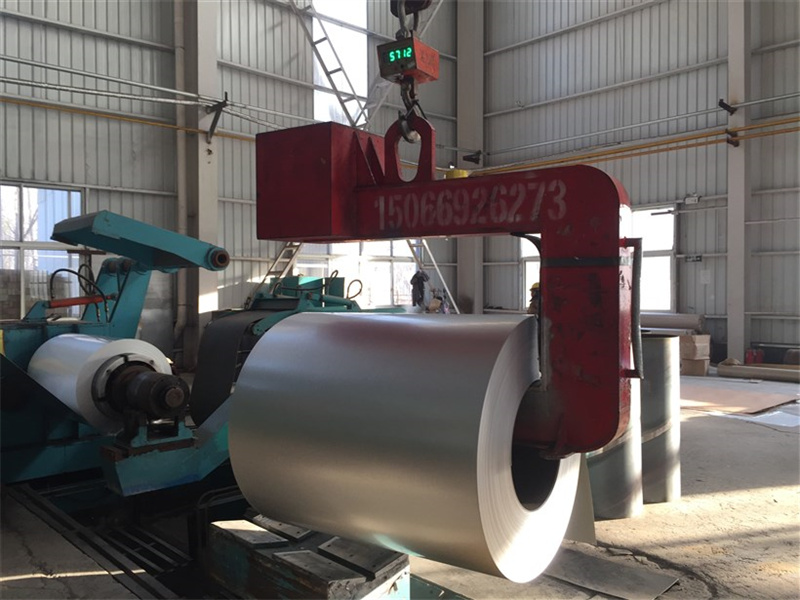

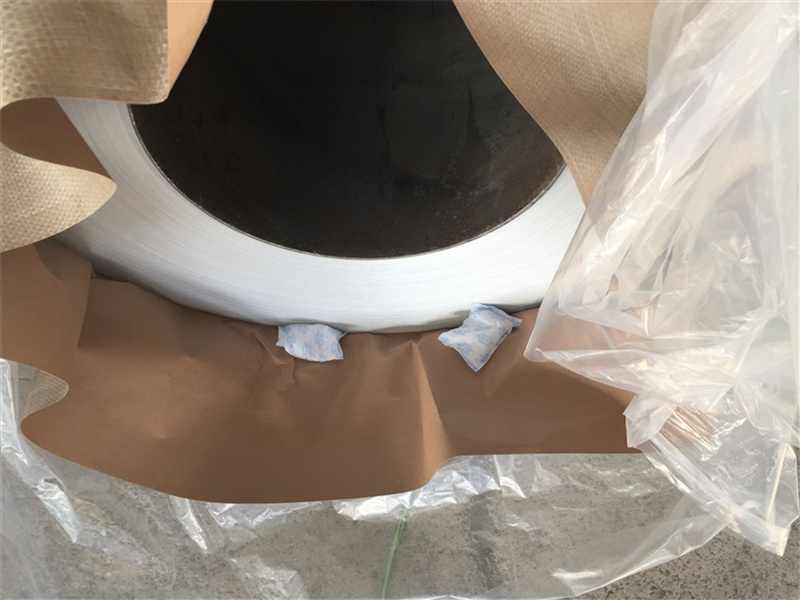

| Coil Formation | Finally, the coated steel strip is coiled into a finished Galvalume steel coil ready for shipment to customers. The coils are typically stored in a controlled environment to protect the coating from damage or corrosion. |
| Some Common Applications | |
| Roofing | Galvalume steel coils are widely used for roofing applications in residential, commercial, and industrial buildings. The combination of aluminum and zinc coating provides excellent corrosion resistance, making it ideal for roofing in diverse environmental conditions. |
| Siding and Cladding | Galvalume steel coils are also used for siding and cladding applications. The material’s durability, long lifespan, and aesthetic appeal make it a popular choice for exterior building facades. |
| Automotive Industry | Galvalume steel coils find applications in the automotive industry for manufacturing car body panels, chassis components, and structural parts. The material’s lightweight nature and corrosion resistance make it suitable for automotive applications. |
| Appliances | Galvalume steel coils are used in the production of household appliances such as refrigerators, ovens, and washing machines. The material’s resistance to corrosion and heat makes it suitable for appliance manufacturing. |
| Construction | Galvalume steel coils are used in various construction applications, including structural components, framing, and support structures. The material’s strength, corrosion resistance, and versatility make it a preferred choice in the construction industry. |
| HVAC Systems | Galvalume steel coils are used in heating, ventilation, and air conditioning (HVAC) systems for manufacturing ductwork and components. The material’s corrosion resistance and heat resistance properties make it suitable for HVAC applications. |
